Types of Modular Operating Rooms

Modern healthcare construction is shifting away from traditional brick-and-mortar surgery suites toward modular operating rooms (MORs) — prefabricated, factory-engineered environments that can be installed, upgraded, and reconfigured with far less disruption than conventional construction. But “modular OR” is an umbrella term. Behind it lies a structured taxonomy based on wall materials, construction methods, cleanliness classes, and clinical specialties. This guide walks through each dimension of classification so planners, architects, and hospital administrators can make informed decisions.

1. Classification by Wall and Enclosure Material

The most common way the industry distinguishes modular ORs is by the material used for the wall and ceiling panel system. The choice directly affects durability, cleanability, infection control, and cost.

1.1 Stainless Steel Modular ORs

A clean, unused sterile modern operating room viewed beside the black padded operating table at the bottom of the frame, with pale mint-green seamless hygienic wall panels, a light grey segmented suspended ceiling, and bright flush rectangular LED panels providing even cool white illumination. Articulated white ceiling-mounted support arms hold two widescreen medical monitors with dark reflective screens, a large multi-bulb shadowless surgical light with pale blue trim, and IV poles with hanging hooks. The right wall features integrated pale cabinetry with dark glass doors, closed lower storage, an open recessed shelf holding a small cardboard box, and a small mounted security camera. A dark recessed display sits on the far wall, louvered ventilation grilles run along the wall base, and a tall grey equipment boom stands at the far left, with all smooth non-porous surfaces designed for easy clinical sterilization.

Stainless steel — often electrolytic galvanized steel with an antimicrobial powder coating — is the premium standard.

Advantages: extreme durability, seamless welding, resistance to aggressive disinfectants, long service life (20+ years)
Typical use: high-acuity surgical suites, transplant centers, facilities with strict infection-control protocols
Trade-off: highest upfront cost

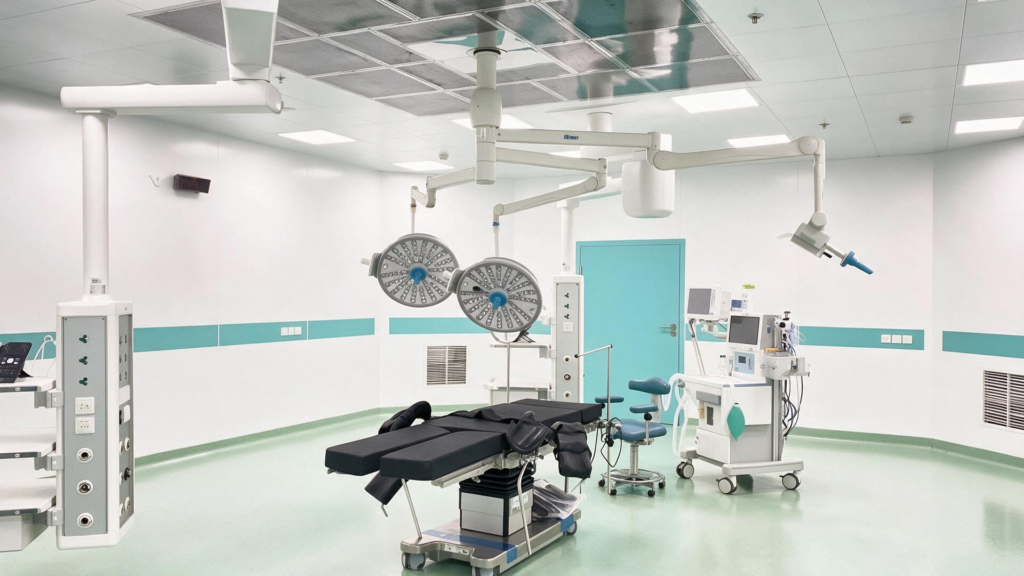

1.2 HPL (High-Pressure Laminate) Modular ORs

Antibacterial high-pressure laminate panels bonded to a solid core offer a cost-effective alternative.

Advantages: wide range of colors and finishes, good impact resistance, lower cost than steel
Typical use: general surgery, day-surgery centers, budget-conscious projects
Trade-off: less resistant to deep abrasion; seams require careful detailing

1.3 Glass Modular ORs

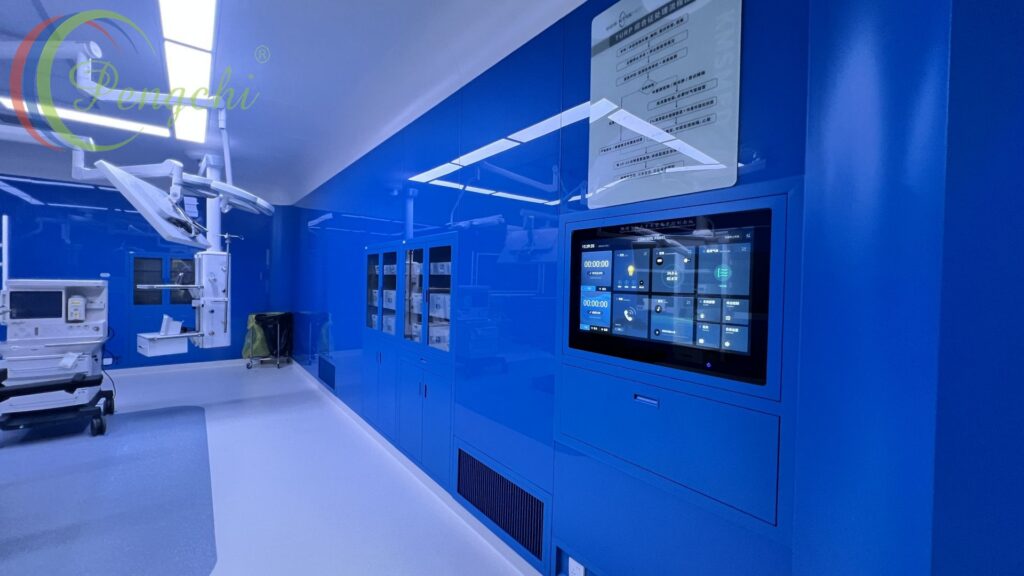

An empty operating room with glossy deep-blue walls, a white floor and bright LED lighting. A flush-mounted touchscreen on the right shows timers and room controls beneath a Chinese flowchart. Blue glass cabinets line the wall, while white surgical lights and a medical cart stand on the left. Reflections on the shiny panels emphasize the clean, high-tech clinical atmosphere.

Tempered, flush-mounted glass wall panels create a smooth, pore-free surface.

Advantages: visually open and modern, extremely easy to wipe down, chemically inert
Typical use: hybrid ORs, teaching hospitals, flagship facilities — often mixed with stainless steel on other walls
Trade-off: higher cost per panel, requires precise installation

1.4 Sandwich Panel (Cleanroom-Style) ORs

Rockwool, magnesium-oxide, or aluminum-honeycomb sandwich panels borrow from cleanroom construction practice.

Advantages: fast installation, good thermal and acoustic insulation, lowest cost
Typical use: rapid-deployment projects, secondary hospitals, temporary capacity
Trade-off: lower impact resistance and perceived quality

1.5 Hybrid and Lead-Lined Configurations

Real projects frequently combine materials — for example, one glass feature wall with stainless steel elsewhere. ORs containing imaging equipment (C-arms, DSA, CT) require lead-lined panels for radiation shielding, forming a distinct sub-category.

2. Classification by Construction Method

Beyond materials, modular ORs differ in how they are built and delivered.

2.1 Prefabricated Modular ORs

Fully engineered room modules are manufactured off-site and assembled on-site. This approach minimizes hospital downtime — a decisive advantage when renovating inside a functioning surgical department.

2.2 Modular Wall and Ceiling Retrofit Systems

Instead of building a room from scratch, a modular envelope (wall panels, pressurized ceiling, hermetic doors, coved flooring) is installed inside an existing shell. This is the dominant method for upgrading legacy operating theatres to modern cleanliness standards.

2.3 Containerized and Mobile ORs

Self-contained surgical units built into ISO containers or trailer platforms. Used for military medicine, disaster response, rural outreach, and surge capacity during emergencies.

2.4 Off-Site Modular Healthcare Buildings

The OR arrives as one component of a complete volumetric modular building — entire surgical wings fabricated in a factory and crane-lifted into place, compliant with standards such as the UK’s HBN 26.

3. Classification by Cleanliness Class

Modular ORs are engineered to achieve specific airborne-particle and air-change standards, which vary by surgical risk.

3.1 International Classification

Class	ISO Equivalent	Typical Procedures
Class I (ultra-clean)	ISO 5	Joint replacement, organ transplant, implant surgery
Class II	ISO 6	Cardiac, neuro, orthopedic surgery
Class III	ISO 7	General surgery
Class IV	ISO 8	Minor procedures, endoscopy

3.2 Airflow Design

Higher classes are usually paired with laminar (unidirectional) airflow ceilings, while lower classes use turbulent mixing ventilation. The modular ceiling system is therefore as much a classification criterion as the walls.

4. Classification by Clinical Specialty

Finally, modular ORs are configured for specific disciplines:

General surgery ORs — the baseline configuration
Hybrid ORs — integrating fixed imaging (angiography, CT, or intraoperative MRI), requiring lead shielding, reinforced floors, and specialized boom layouts
Cardiac, orthopedic, and neurosurgical ORs — larger footprints for equipment-heavy teams
Ophthalmic and day-surgery ORs — compact, high-throughput rooms
Supporting modular units — the same panel systems extend to ICUs, CSSDs (sterile supply departments), and isolation rooms, creating a unified modular clean department

5. How to Choose

Selecting among these types comes down to four questions:

Clinical risk level — what cleanliness class do the procedures demand?
Lifecycle cost — stainless steel costs more upfront but outlasts HPL and sandwich panels.
Construction constraints — retrofit panel systems suit occupied hospitals; volumetric modules suit new builds.
Future flexibility — modular systems shine when layouts must evolve; demountable panels allow reconfiguration without demolition.

Conclusion

The modular operating room is not a single product but a family of solutions: classified by enclosure material (stainless steel, HPL, glass, sandwich panel), by construction method (prefabricated, retrofit, containerized, volumetric), by cleanliness class (ISO 5–8), and by clinical specialty. Understanding this taxonomy lets healthcare projects match the right type to the right need — delivering safer, faster-built, and more adaptable surgical environments.
