Description
Product Description

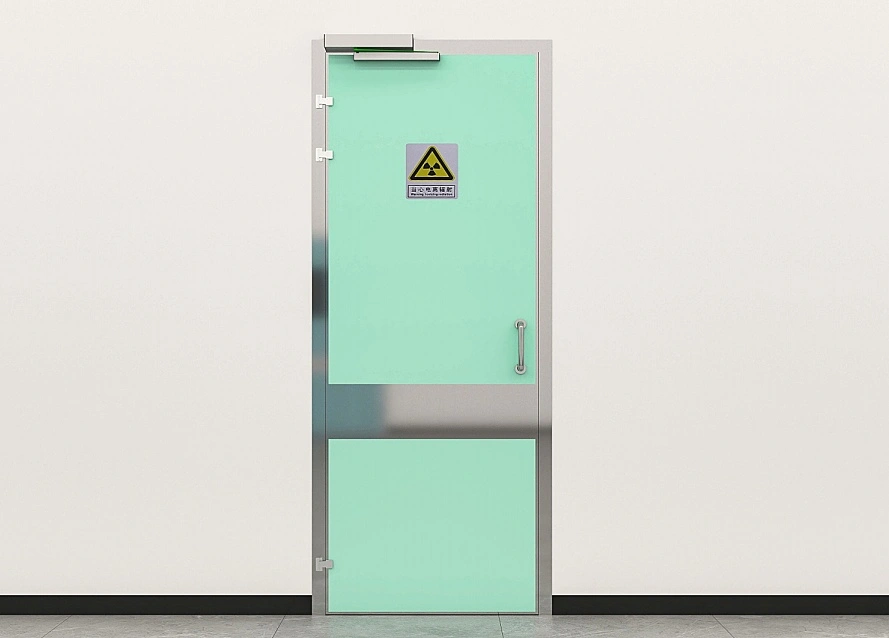

Manual lead radiation-shielding doors effectively block ionizing radiation such as X-rays and gamma rays, with a shielding efficiency of over 99%, making them the preferred solution for radiation protection in medical, industrial, and research settings.
Product Features
01 Lead lining is installed inside the door leaf and door frame, with a lead equivalent ranging from 2 to 4 mm Pb;
02 The observation window shall be made of leaded glass;
03 The door surface can be finished with either electrostatic powder coating or 304 stainless steel;

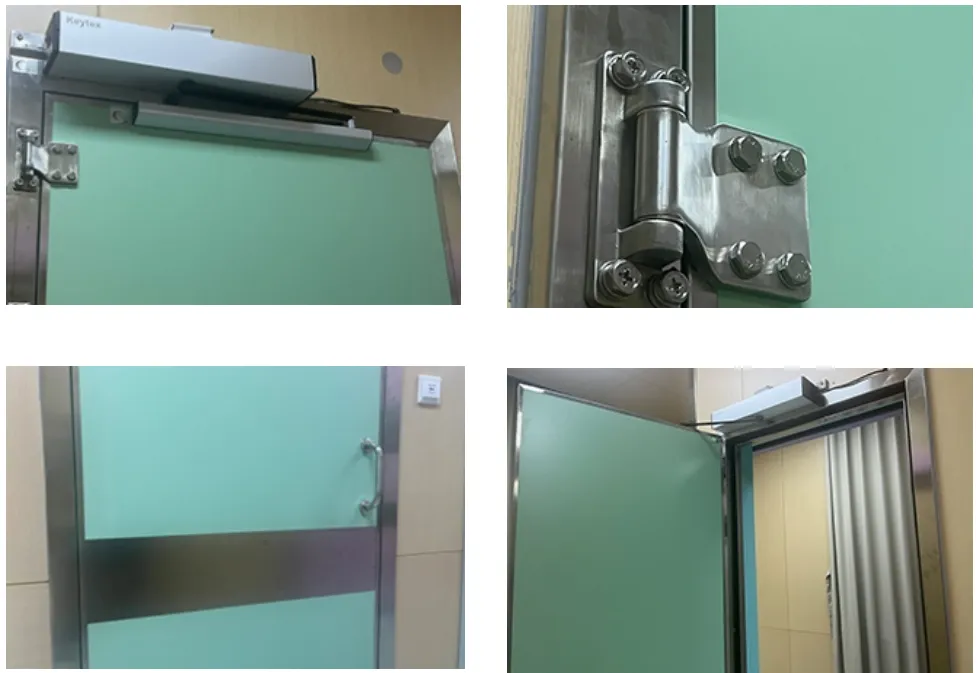

04 Manual hinged lead doors are relatively heavy; they can be equipped with an electric door closer to effortlessly open and close the door leaf.
05 The door leaf panel is made of powder-coated steel plate or 304 stainless steel, and the door frame is made of 304 stainless steel;
Product Specifications
| Parameters | Parameter value |
|---|---|
| Panel material | Electrostatic powder coating on steel plates, 304 stainless steel |
| Door frame material | 304 stainless steel |
| Hardware accessories | The door lock and hinges are both made of stainless steel. |
| Door opening angle | 0°~170° |
| Internal filling | Aluminum plate (2–4 mm Pb equivalent) |
| Reference wall | Earth walls, color-coated steel panels, and light-gauge steel stud walls |
| Doorway dimensions | Width 900 × Height 2100 |
| Door body dimensions | Width 852 × Height 2062 |
| By size | Width 810 × Height 2035 |
Product Applications
