Product Description

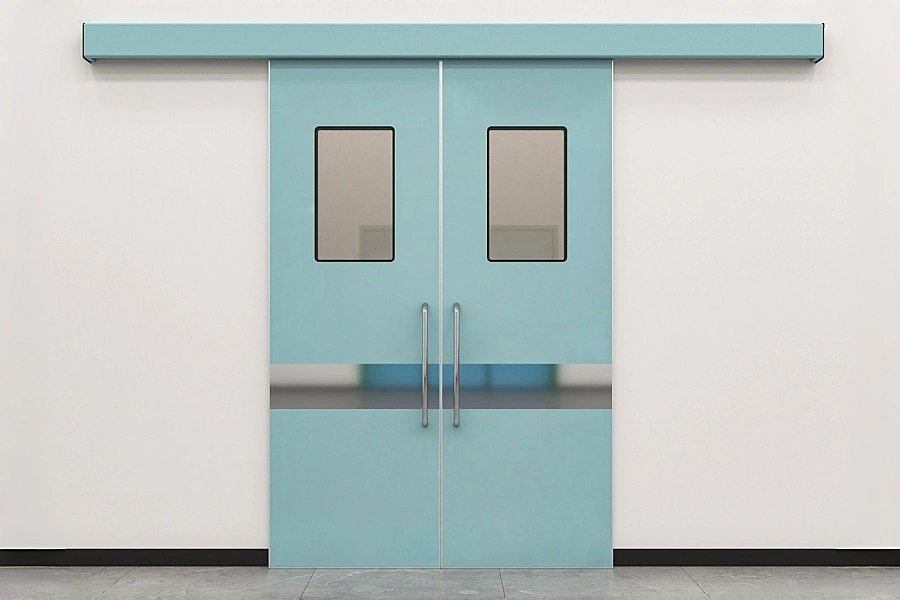

Medical double-leaf automatic sliding doors are specifically designed for healthcare facilities, featuring a bi-directional sliding opening mechanism that meets the demands of high-traffic flow, maintenance of aseptic environments, and emergency evacuation.
Product Features
01 The door leaf is electrostatically powder-coated steel, while the door frame is made of high-strength aluminum extrusions. Sealing strips are installed around the perimeter of both the door leaf and the frame to ensure an airtight seal.
02 The door closing delay time can be preset, and various modes such as automatic, normally open, normally closed, and half-open can be selected as needed.
03 Optional core materials: aluminum honeycomb or paper honeycomb;
04 The door leaf and frame feature dual sealing, coupled with a unique recessed internal-pressure track, ensuring excellent air-tightness;
05 The two doors open simultaneously, providing a wide exit space that facilitates the rapid passage of hospital beds, medical equipment, and personnel (e.g., in emergency rooms and patient transport corridors);
Product Specifications
| Door opening operating speed | 250–500 mm/s (adjustable) | Door frame material | Aluminum profile door frame |
| Closing operating speed | 250–500 mm/s (adjustable) | Internal filling | Paper honeycomb / Aluminum honeycomb |
| Opening Hours | 2–20 seconds (adjustable) | Reference wall | Earth walls, color-coated steel panels, and light-gauge steel stud walls |
| Use power supply | 220V | Doorway dimensions | Width 1500 × Height 2100 |
| Manually push | <100N | Door body dimensions | Width 1580 × Height 2122 |
| Panel material | Electrostatic Powder Coating on Steel Plates | By size | Width 1484 × Height 2092 |
