Description
Product Description

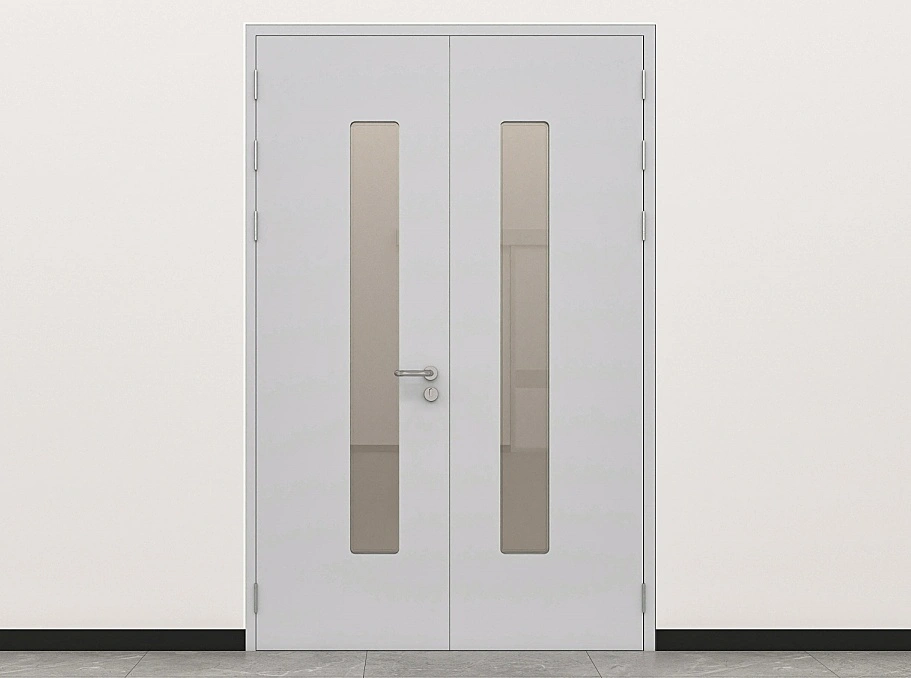

A manually operated, double-leaf steel door is a type of bi-parting door constructed from high-quality steel, offering exceptional strength, durability, fire resistance, moisture resistance, and sound insulation. It is ideally suited for use in hospitals, cleanrooms, and other similar environments.
Product Features
01 The door leaf and frame are made of steel plate with powder coating, offering antibacterial properties and a variety of color options;
02 Large-Space Barrier-Free Access: Dual-leaf swing-door design facilitates the movement of large equipment, goods, or high-traffic pedestrian flow (e.g., hospitals, warehouses, and workshops);
03 The door leaf assembly employs a mortise-and-tenon structure, with no weld marks and no risk of detachment;
04 The door leaf is equipped with high-quality airtight sealing strips around its perimeter, ensuring complete isolation from outdoor air and maintaining cleanliness.

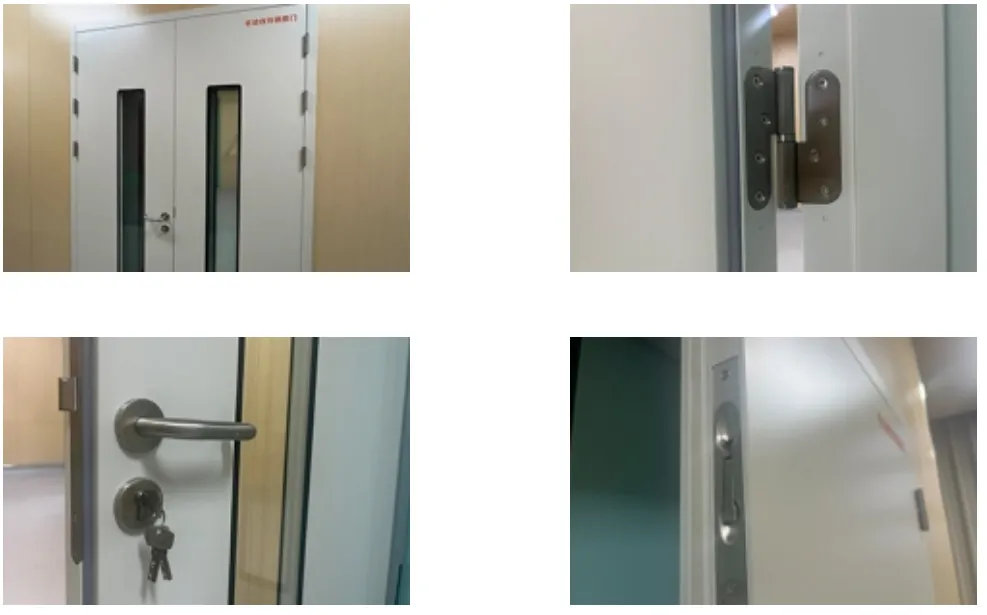

05 Equipped with an observation window, 304 stainless steel door lock and hinges, and a lift-type air-tight rubber seal at the bottom; optional stainless steel anti-collision strip available.
Product Specifications
| Parameters | Parameter value |
|---|---|
| Panel material | Electrostatic Powder Coating on Steel Plates |
| Door frame material | Bilateral steel plate electrostatic powder coating |
| Hardware accessories | The door lock and hinges are both made of stainless steel. |
| Door opening angle | 0°~170° |
| Internal filling | Paper honeycomb/Aluminum honeycomb |
| Reference wall | Earth wall |
| Doorway dimensions | Width 1500 × Height 2100 |
| Door body dimensions | Width: 1466 × Height: 2070 |
| By size | Width 1450 × Height 2073 |
| Reference wall | Color-coated steel sheet |
| Doorway dimensions | Width 1500 × Height 2100 |
| Door body dimensions | Width: 1428 × Height: 2046 |
| By size | Width: 1413 × Height: 2049 |
Product Applications
