Description
Product Description

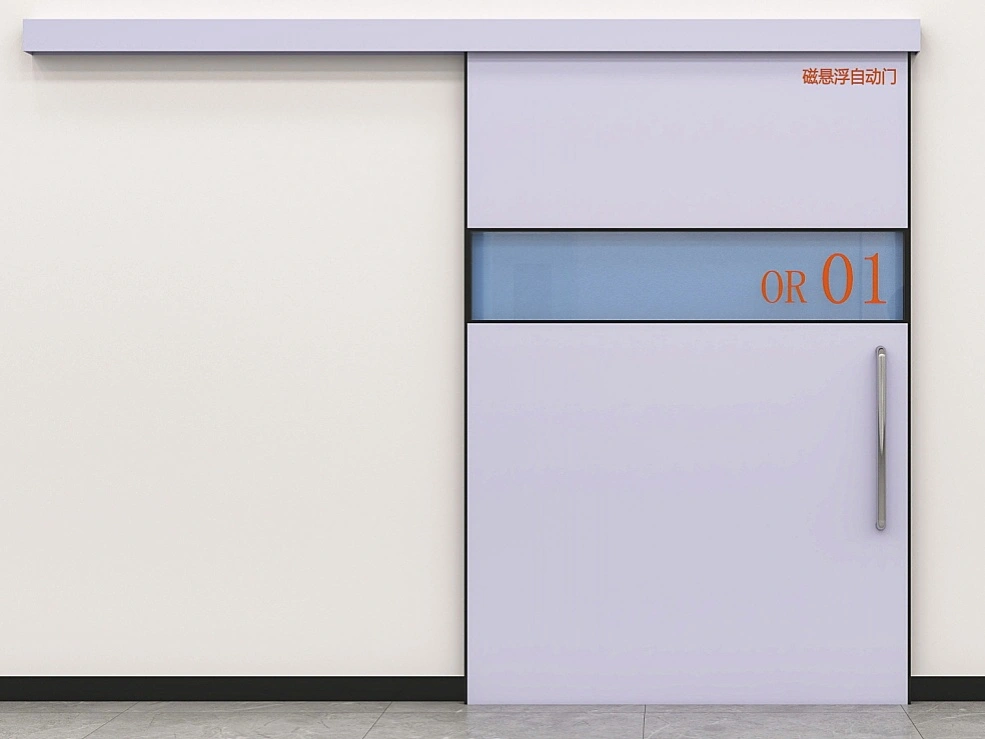

Medical single-leaf automatic sliding doors are specifically designed for healthcare and cleanroom environments. Featuring a unidirectional sliding opening mechanism, they are fully automated via sensors or control systems, meeting the requirements for cleanliness, safety, and barrier-free access.
Product Features
01 Employs a linear motor drive with no gearbox, resulting in ultra-low operating noise;
02 A linear motor is used as the power source, ensuring highly smooth and quiet door opening and closing.
03 The door leaf can be filled with either aluminum honeycomb or paper honeycomb;
04 Inductive switch configuration with both hand-sensing and foot-sensing switches;
05 The door header guide rail features a flip-cover design for convenient subsequent maintenance;
Product Specifications
| Maglev motor | Linear Permanent Magnet Brushless DC Motor | Door frame material | Aluminum profile door frame |
| Door opening operating speed | 250–500 mm/s (adjustable) | Internal filling | Paper honeycomb / Aluminum honeycomb |
| Closing operating speed | 250–500 mm/s (adjustable) | Reference wall | Earth walls, color-coated steel panels, and light-gauge steel stud walls |
| Use power supply | 220V | Doorway dimensions | Width 1500 × Height 2100 |
| Opening Hours | 2–20 seconds (adjustable) | Door body dimensions | Width 1584 × Height 2122 |
| Panel material | Electrostatic Powder Coating on Steel Plates | By size | Width 1484 × Height 2092 |
