Description
Product Description

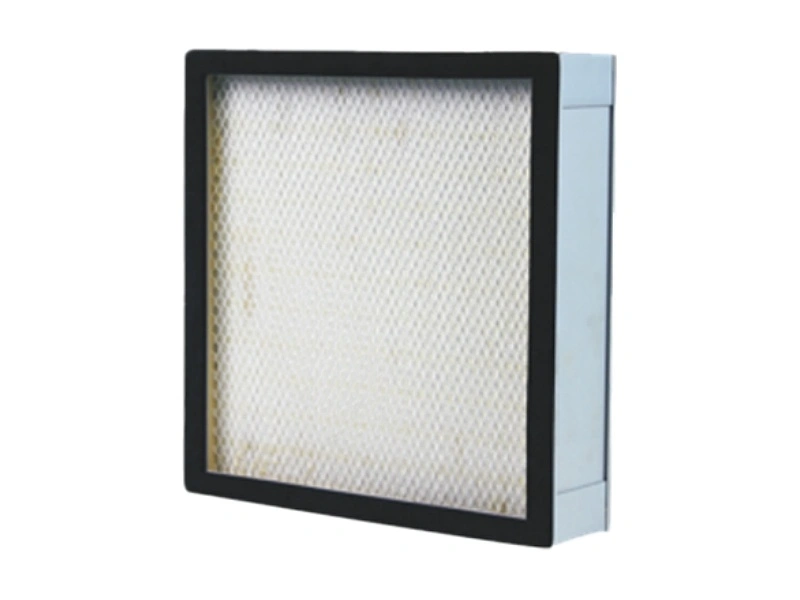

An air filter is a device used to remove particulates, dust, microorganisms, and harmful gases from the air, and is widely employed in industries, healthcare settings, and cleanrooms.
Product Features
01 Based on filtration efficiency, filters are classified as primary, medium, and high-efficiency filters;
02 The high-efficiency filter uses ultra-fine glass fiber as the filter element, with a dedicated aluminum alloy frame.
03 Large filtration area, low resistance, high dust-holding capacity, uniform air velocity, high filtration accuracy, and low operating costs;
04 High-efficiency filters with filtration grades ranging from H10 to U17;
Product Specifications
| Size | Efficiency | Air volume | Outer frame material | Filter element material | Remarks |
| 475*475*69 | H10-U17 | 400-600 | Aluminum alloy | Glass fiber | |
| 610*610*69 | 600-800 | ||||
| 1170*570*69 | 1000-1100 | ||||
| 1220*610*69 | 900-1200 | ||||
| 320*320*90 | 500-700 | ||||
| 484*484*90 | 1000-1200 | ||||
| 630*630*90 | 1500-1700 | ||||
| 380*380*90 | 500-700 | Liquid tank sealing | |||
| 540*540*90 | 1000-1200 | Liquid tank sealing | |||
| 640*640*90 | 1500-1700 | Liquid tank sealing |
Product Applications
