Product Description
Operating room cabinet products include medication cabinets, anesthesia cabinets, instrument cabinets, catheter cabinets, and computer cabinets.
The cabinets in the operating room are uniformly installed as recessed units, flush with the wall surface, primarily for the storage and management of surgical supplies, thereby ensuring an efficient and safe surgical environment.
Product Features
- The surface can be finished with high-temperature electrostatic powder coating or 304 brushed stainless steel.
- Wall-mounted, flush-mounted installation with uniform dimensions and no sanitary dead zones;
- Built-in, height-adjustable ladder design for freely adjusting the tempered glass height;
- The grooving process is employed to minimize bent-radius sheet metal, resulting in tighter fits between sheet metal components and reducing dust accumulation.
Product Specifications
| Drawing Number | PCQXG-02 |
| Specifications | Height 1298 × Length 898 × Depth 350 Height 1698 × Length 898 × Depth 350 Height 1698 × Length 1198 × Depth 350 |

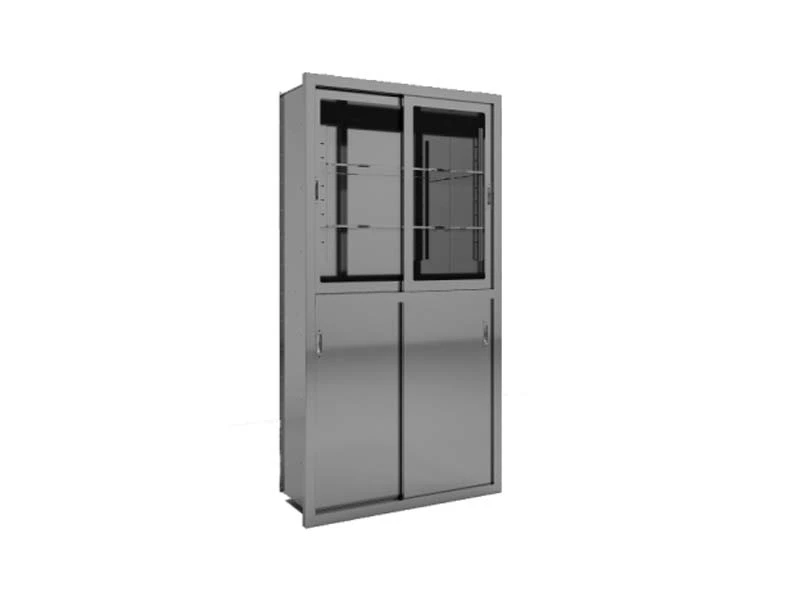

| Product Description | Cabinet body made of 304 stainless steel, with a 1.2 mm-thick panel and a 1.0 mm-thick cabinet shell; In-cabinet groove milling process, no glass sealant used, seamless welding technology, and no sanitary dead zones. Hardware fittings include concealed pull handles and silent, damping slide rails. The overall structure consists of a glass sliding door at the top and a stainless steel sliding door at the bottom. The cabinet is equipped with glass shelves featuring a freely adjustable height design, and the cabinet body is flush with the wall. Customizable to non-standard specifications |
Product Applications
