Description
Product Description

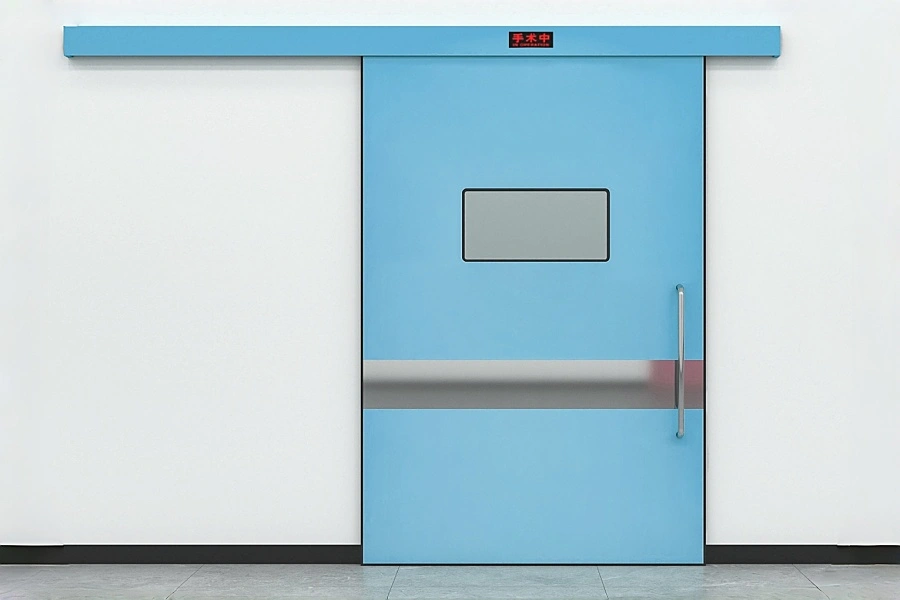

Medical single-leaf automatic sliding doors are specifically designed for healthcare and cleanroom environments. They feature a unidirectional sliding opening mechanism and are fully automated via sensors or control systems, meeting the requirements for cleanliness, safety, and barrier-free access.
Product Features
01 The core material can be aluminum honeycomb or paper honeycomb; the surface is coated with anti-static powder paint on steel sheet, and the door leaf is edged with aluminum profiles, with sealing strips installed around the perimeter.
02 Four-way adjustable door-hanging mechanism, which effectively allows for vertical, horizontal, and lateral adjustment of the door leaf to achieve the required sealing performance;
03 The door canopy is coated with baked enamel in the same color as the door leaf and features a built-in LED display that reads “Operating.”
04 Automatically records the number of opening and closing cycles, provides fault code prompts, features anti-pinch functionality, and supports fire-fighting interlock, among other functions;
05 Preset operating time and speed. Switching modes support hand sensors, foot sensors, and more.
Product Specifications
| Door opening operating speed | 250–500 mm/s (adjustable) | Door frame material | Aluminum profile door frame |
| Closing operating speed | 250–500 mm/s (adjustable) | Internal filling | Paper honeycomb / Aluminum honeycomb |
| Opening Hours | 2–20 seconds (adjustable) | Reference wall | Earth walls, color-coated steel panels, and light-gauge steel stud walls |
| Use power supply | 220V | Doorway dimensions | Width 1500 × Height 2100 |
| Manually push | <100N | Door body dimensions | Width 1584 × Height 2122 |
| Panel material | Electrostatic Powder Coating on Steel Plates | By size | Width 1484 × Height 2092 |
