Q1: What is this lead operating room door mainly used for?

A1: It is multi-layered lead radiation-shielding door, mainly applied in DSA operating rooms and hybrid operating rooms. It blocks X-ray radiation leakage to protect personnel inside and outside the room, and the wide opening can accommodate large diagnostic imaging equipment. It is also suitable for hospitals, food factories, biological factories and electronics factories.

Q2: What are the available door opening types?

A2: We support customizable opening types: left-opening, right-opening, bi-parting double leaf. Single-leaf or symmetrical double-leaf configuration can be designed according to project drawings. It can be manual or automatic airtight sliding door / swing door.

Q3: What is the radiation shielding capacity of the door?

A3: The internal filling is lead sheet with 2–4 mm Pb equivalent, made of high-purity lead panels for reliable radiation shielding against harmful X-ray.

Q4: What are the power supply and operation parameters?

A4: Power supply: 220V. Door opening/closing speed: 300–500 mm/s (adjustable) Response time: 0.1–0.9 seconds (adjustable) Start and stop time: 1–60 seconds (adjustable) The door adopts imported motor + high-power drive and ultra-quiet pulley system for smooth, low-noise operation.

Q5: What materials are used for the door panel and frame?

A5: Door panel and door frame are steel plates with electrostatic powder coating. Aluminum accessories are optional.

Q6: What functions does this operating room door have?

A6: Airtight sealing, fire prevention, moisture proof, acoustic insulation and X-ray radiation shielding.

Q7: Can I customize color and style?

A7: Yes, both color and style are customizable to match your site decoration requirement.

Q8: What optional accessories can be equipped?

A8: Observation window with dimming glass is available as optional accessory.

Q9: What is the warranty and after-sale service?

A9: 1-year warranty. We provide online technical support after sales.

Q10: Is the door quiet during operation?

A10: Yes. The imported drive system and ultra-quiet pulley system ensure smooth and noise-free opening and closing.

Q11: Can you provide project solution support?

A11: We can customize door solution according to your operating room project drawings.

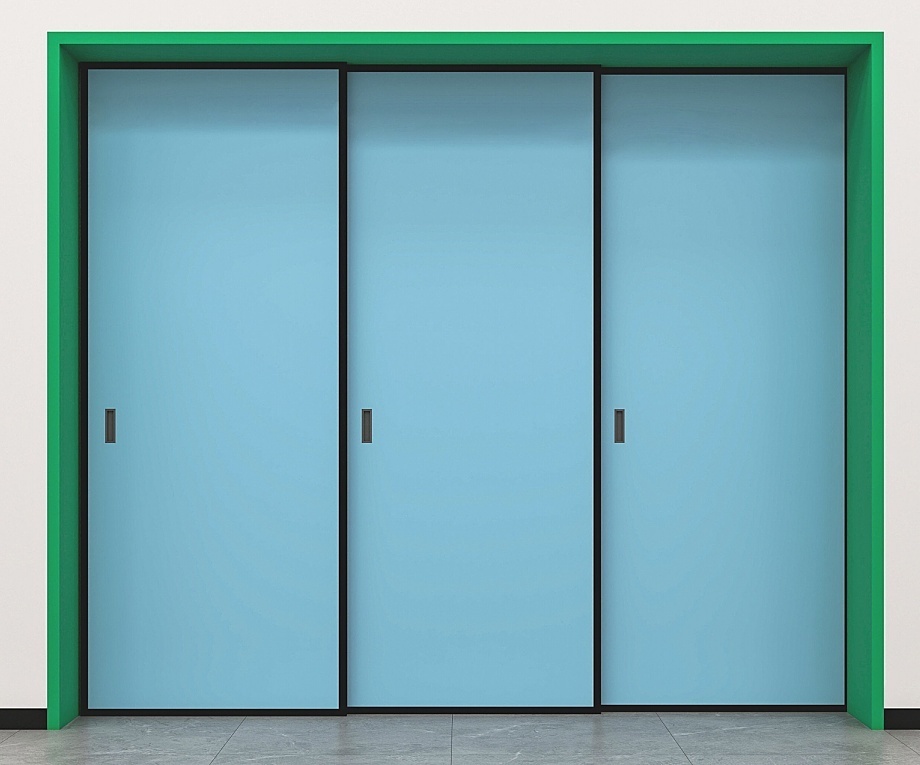

Medical Overlapping Radiation-Proof Lead Door

Multi-layered lead radiation-shielding doors are primarily used in DSA operating rooms. They feature exceptionally wide entry and exit openings to accommodate large diagnostic imaging equipment, while effectively preventing X-ray radiation

Chat on WhatsApp Email for a quote

SKU: PCFHQM-03 Category: Medical Radiation-proof Swing Door

Description

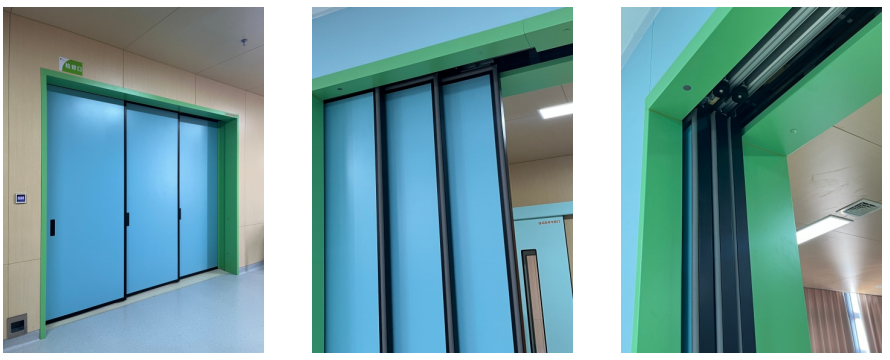

The overlapping automatic sliding lead door is constructed with high-purity lead panels, making it ideal for use in DSA hybrid operating rooms. It effectively shields against harmful radiation, thereby ensuring safety within the operating room.
Spacious, open design with an integrated overlapping configuration; customizable for right-hand, left-hand, or bi-parting door operation, ensuring unobstructed passage for various large-scale inspection equipment.
Flexible design: The door opening configuration can be customized—single-leaf on one side or double-leaf with symmetrical opening—according to the requirements specified in the operating room project drawings.
Quiet operation: equipped with an imported motor and high-power drive, paired with an ultra-quiet pulley system, ensuring smooth, effortless, and noise-free door opening.

Parameters	Parameter value
Door opening/closing operating speed	300–500 mm/s (adjustable)
Response time	0.1–0.9 seconds (adjustable)
Start and stop time	1–60 seconds (adjustable)
Use power supply	220V
Door leaf opens toward	Left-opening, right-opening, and double-opening
Panel material	Electrostatic Powder Coating on Steel Plates
Door frame material	Electrostatic Powder Coating on Steel Plates
Internal filling	Lead sheet (2–4 mm Pb equivalent)
