Description

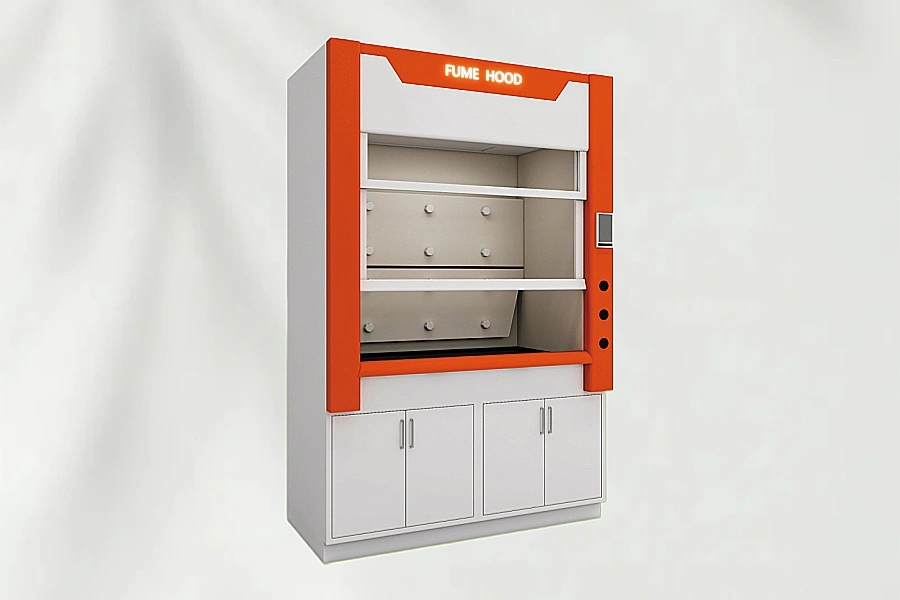

Product Description

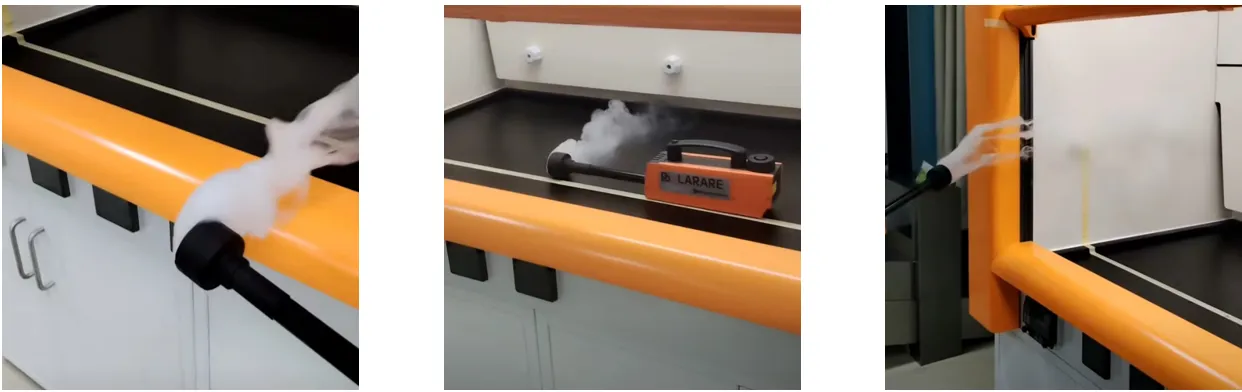

Details of the Smoke Test for C-Series Circular-Arch Fume Hoods
 |  |
| Same face velocity | C-Series Circular-Arch Ventilation Hood |
| Comparison of Smoke Tests for Different Fume Hoods | Smoke test results |
Product Features
A. The front column and intake baffle are designed with an R20 streamlined curved surface, which ensures smoother air intake into the fume hood and reduces turbulence.
B. The inlet wing panel incorporates a make-up air function, which can reduce air turbulence at the intake;
C. The diversion system has undergone extensive physical testing and effectively vents gases of varying specific gravities even at extremely low face velocities.
D. Features a transparent fixed viewing window, providing operators with a wider field of view;
E. The fume hood can automatically adjust its face velocity and exhaust airflow parameters based on the height of the viewing window, thereby achieving optimal energy efficiency.
F. Toothed synchronous belt drive design: the window slides smoothly and effortlessly with low noise, and the steel wire rope is fully enclosed by the synchronous belt, effectively preventing corrosion;

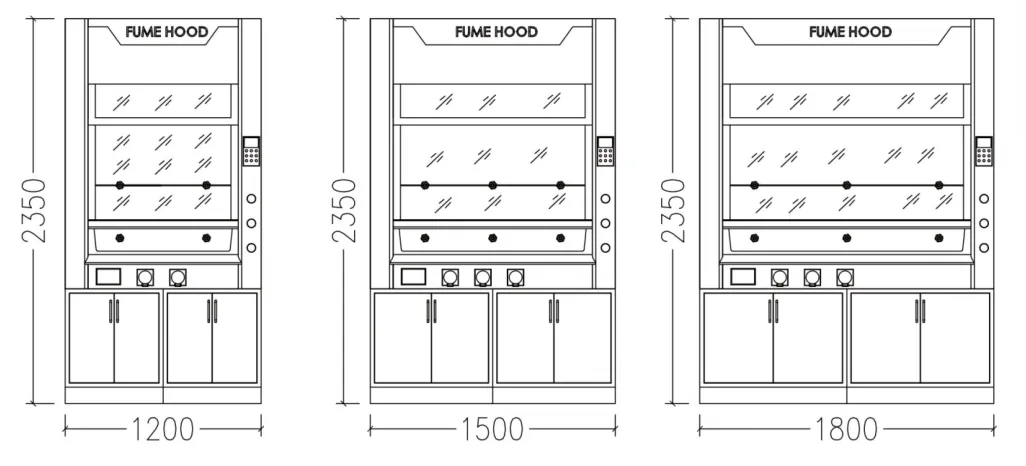

Product Specifications
| Length (mm) | 1200 | 1500 | 1800 |
| Depth (mm) | 850 | 850 | 850 |
| Height (mm) | 2350 | 2350 | 2350 |
| Main Material | Electrolytic steel plate | Electrolytic steel plate | Electrolytic steel plate |
| Countertop material | Ceramic/Physicochemical Board | Ceramic/Physicochemical Board | Ceramic/Physicochemical Board |
| socket | 2*10A | 2*10A | 2*10A |
Product Applications
